Cast Iron Manhole Cover D400, Manhole Cover With Frame Certified Uni En124-1/2

The cast iron manhole cover D400, featuring a square frame with a U-shaped closure, is designed to provide a robust and reliable solution for urban infrastructure. Its superior durability and functionality make it a cornerstone for modern road and utility systems.

Contact us for more information and details about products in the store.

Description

The manhole cover with frame certified UNI EN124-1/2 is made from high-quality spheroidal cast iron GJS 500-7, ensuring exceptional resistance to wear and heavy loads. With a load capacity exceeding 400 KN, it is suitable for high-traffic areas such as streets, highways, parking lots, and pedestrian zones.

The cover’s U-shaped closure provides a watertight seal, protecting underground systems from water infiltration and debris. Its contoured frame allows for secure anchoring during installation, while the classic design ensures seamless integration with urban aesthetics. The addition of an elastomer gasket enhances sealing capabilities, making this manhole cover a long-lasting and dependable choice for modern infrastructure.

Features

• Material: made from spheroidal cast iron GJS 500-7; offers superior mechanical strength

• Compliance: certified to UNI EN124-1/2 standards for reliability in demanding applications

• Load resistance: supports loads greater than 400 KN, suitable for high-traffic areas

• Frame design: a square frame with a U-shaped closure ensures a secure and watertight fit

• Contour: frame shape facilitates stable anchoring during installation

• Seal: equipped with an elastomer gasket for enhanced sealing performance

• Aesthetics: classic and uniform design integrates harmoniously with urban surroundings

Dimensions

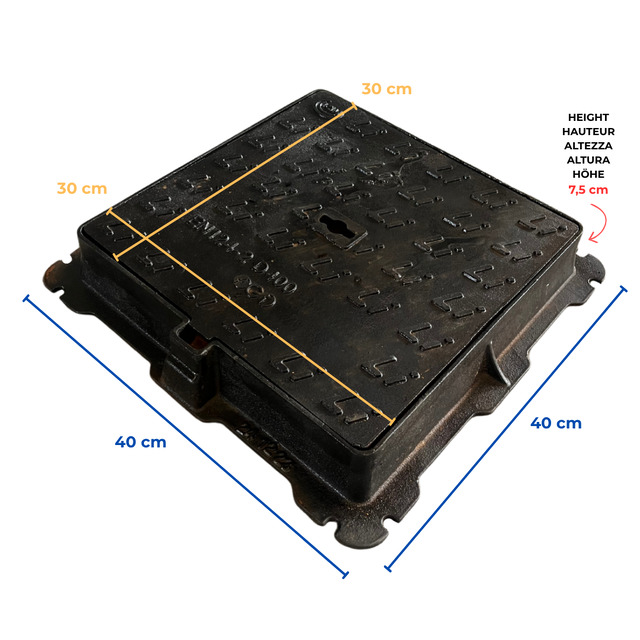

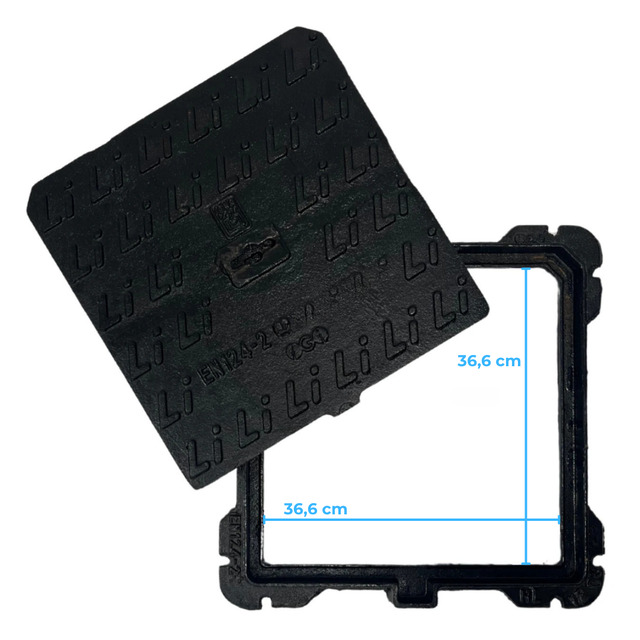

• 400 x 400 mm: clear opening 300 x 300 mm, height 76 mm, weight 20 kg

• 500 x 500 mm: clear opening 400 x 400 mm, height 76 mm, weight 30 kg

• 600 x 600 mm: clear opening 500 x 500 mm, height 76 mm, weight 42 kg

• 700 x 700 mm: clear opening 600 x 600 mm, height 76 mm, weight 61 kg

• 800 x 800 mm: clear opening 700 x 700 mm, height 76 mm, weight 81 kg

• 900 x 900 mm: clear opening 800 x 800 mm, height 76 mm, weight 101 kg

• 1000 x 1000 mm: clear opening 900 x 900 mm, height 100 mm, weight 137 kg

• 1100 x 1100 mm: clear opening 1000 x 1000 mm, height 100 mm, weight 160 kg

• 850 x 850 mm: clear opening ø600 mm, height 100 mm, weight 63 kg

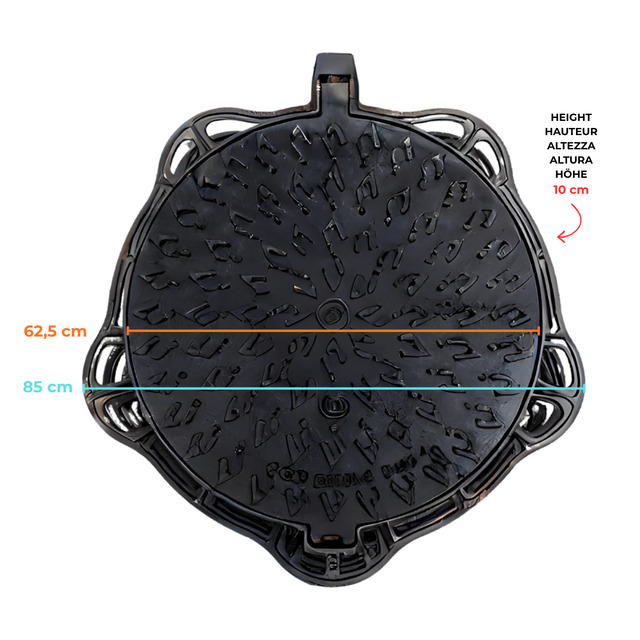

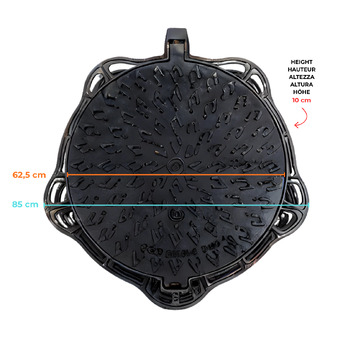

• ø850 mm (octagonal frame and round cover): clear opening ø600 mm, height 100 mm, weight 57 kg

Uses and applications

• Parking lots: suitable for both small and large parking facilities

• City streets: ideal for urban roads and highways with heavy traffic

• Highways: designed for areas with constant vehicular loads

• Pedestrian zones: provide safe and secure access while maintaining urban aesthetics

• Sidewalks: integrates seamlessly into walkways for added durability and functionality

• Multi-level parking structures: ensures stability and longevity in heavy-use areas

Benefits

• Exceptional durability: crafted from GJS 500-7 cast iron, ensuring resistance to wear, weather, and heavy loads

• High load capacity: supports loads exceeding 400 KN, ideal for heavy traffic areas

• Watertight seal: U-shaped closure and elastomer gasket prevent water infiltration, protecting underground systems

• Easy installation: a contoured frame simplifies installation, reducing time and labor costs

• Aesthetic integration: classic design complements urban landscapes without compromising functionality

• Eco-friendly materials: made from recyclable cast iron, contributing to sustainable infrastructure

• Minimal maintenance: robust materials and construction reduce the need for frequent upkeep

Frequently asked questions

1. Can this manhole cover withstand heavy vehicular traffic?
Yes, the D400 cover has a load capacity of over 400 KN, making it suitable for roads, highways, and parking lots.

2. Is the cover resistant to environmental conditions?
Absolutely. The spheroidal cast iron and elastomer gasket ensure protection against wear, corrosion, and water infiltration.

3. Can this be used in pedestrian areas?
Yes, its classic design and anti-slip surface make it ideal for sidewalks and pedestrian-heavy zones.
