Cast Iron Grid D400, Concave Square Drainage Grid With Frame, Equipped With A Safety System With Pressure Closure

The cast iron grid D400 is a robust and reliable drainage solution designed for high-traffic areas. Made from high-quality spheroidal cast iron GJS 500-7, these grids are certified to EN 124 standards and built to withstand loads exceeding 400 KN. With excellent drainage capabilities and a functional design, they are ideal for parking lots, roads, and highways.

Contact us for more information and details about products in the store.

Description

The cast iron grid D400 combines durability, efficiency, and aesthetic appeal to meet the demands of urban and road infrastructure. Its concave square drainage grid with frame is equipped with a safety system featuring pressure closure, ensuring secure placement and effective water management. The internal fins in the square frame provide stable placement for a polypropylene siphon, further optimizing drainage.

Available in both square and round designs, these grids are engineered for heavy loads, making them perfect for urban and industrial settings. The classic and uniform design integrates seamlessly with urban landscaping while ensuring functionality.

Features

• Material: made from spheroidal cast iron GJS 500-7 for maximum strength and durability

• Load resistance: supports loads greater than 400 KN, suitable for high-traffic areas

• Type: available in square and round models

• Drainage capacity: ensures effective management of rainwater runoff

• Design: square frame with internal fins for secure siphon placement and efficient drainage

• Aesthetics: classic and uniform design respects urban landscaping

Dimensions

Square

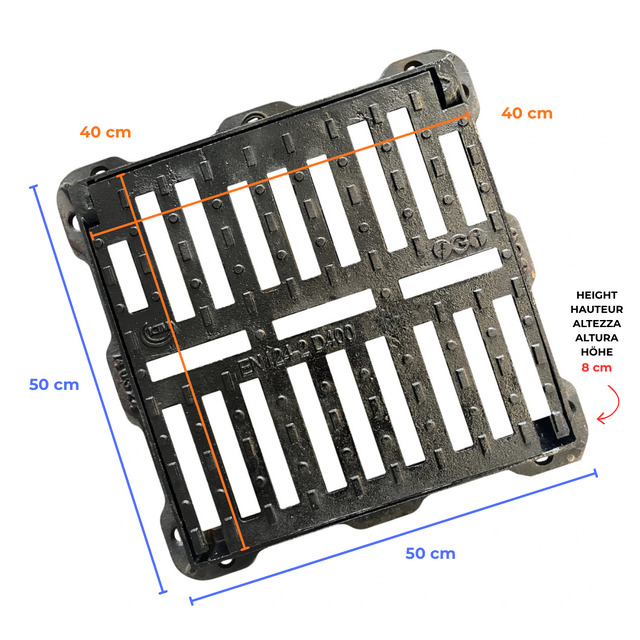

• 500 x 500 mm: clear opening 400 x 400 mm, height 76 mm, weight 32 kg

• 600 x 600 mm: clear opening 500 x 500 mm, height 76 mm, weight 47 kg

• 700 x 700 mm: clear opening 600 x 600 mm, height 76 mm, weight 58 kg

• 800 x 800 mm: clear opening 700 x 700 mm, height 80 mm, weight 81 kg

• 900 x 900 mm: clear opening 800 x 800 mm, height 80 mm, weight 106 kg

Round

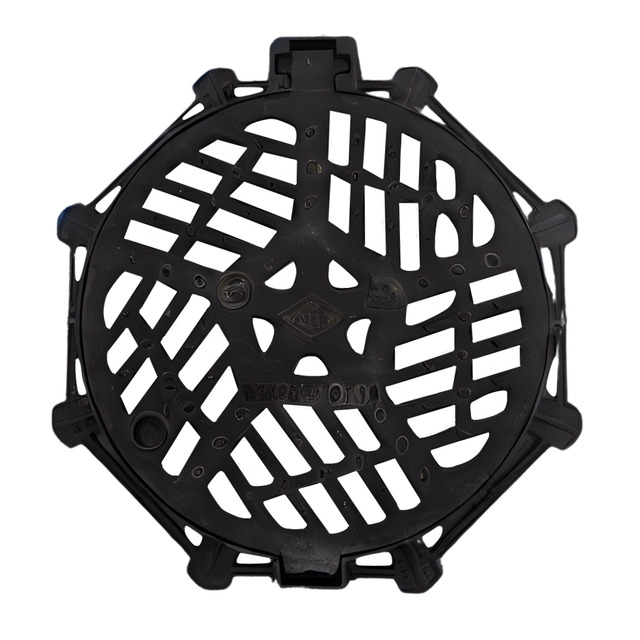

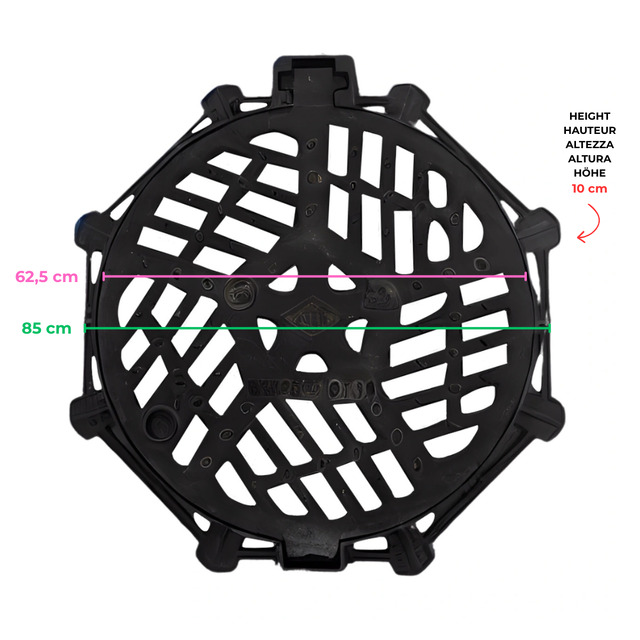

• ø 850 mm: clear opening ø 600 mm, height 100 mm, weight 55 kg

• Additional features: elastomer gasket and 90° locking mechanism for enhanced safety

Uses and applications

• Parking areas: ideal for managing rainwater in commercial, public, and office parking spaces

• Roads and highways: ensures effective drainage for vehicular safety in urban and highway environments

• Industrial facilities: robust and durable for industrial areas with heavy water management and traffic requirements

Benefits

• Durability and resistance: built to handle heavy loads and harsh conditions, ensuring long-term reliability

• Efficient drainage: facilitates rapid water disposal, preventing flooding and standing water

• Easy installation: internal fins and secure design simplify installation and anchoring

• Enhanced safety: reduces the risk of road flooding, contributing to vehicular and pedestrian safety

• Aesthetic integration: harmonizes with urban landscapes while delivering practical functionality

Frequently asked questions

1. What makes the D400 grid suitable for high-traffic areas?
The grid's spheroidal cast iron structure and ability to withstand loads over 400 KN make it ideal for roads, parking lots, and highways.

2. How does the 90° locking mechanism enhance safety?
The locking mechanism ensures the grid stays securely in place, even under heavy traffic or adverse weather conditions.

3. Can this grid be used in industrial areas?
Yes, its durability and drainage efficiency make it perfect for industrial zones with heavy vehicle traffic and significant water management needs.
