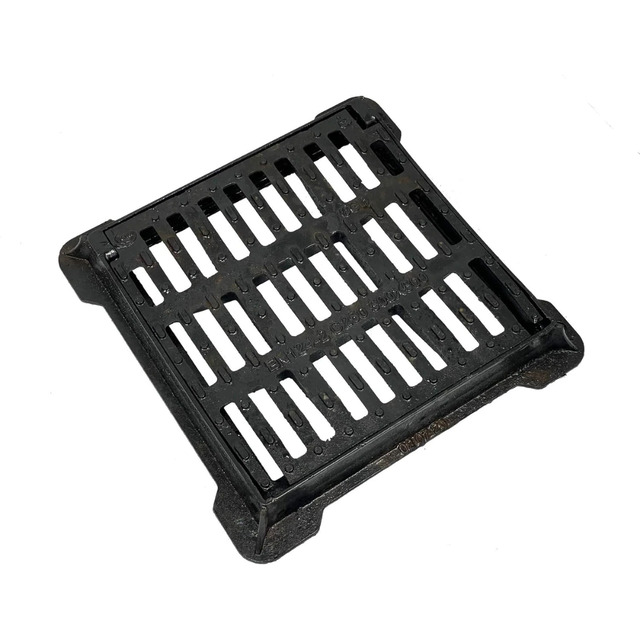

Cast Iron Grid C250, Concave Square Drainage Grid With Frame, Equipped With A Safety System With Pressure Closure

The cast iron grid C250 is a robust and efficient drainage solution, designed to withstand heavy loads and ensure effective water management. Featuring a concave square drainage grid with a frame, equipped with a safety system with pressure closure, this product is ideal for use on road edges and areas with significant vehicular traffic.

Contact us for more information and details about products in the store.

Description

Constructed from high-quality spheroidal cast iron GJS 500-7 and certified to EN 124 standards, the cast iron grid C250 provides superior durability and resistance. Designed to handle loads exceeding 250 KN, it ensures safe and efficient drainage in high-demand environments.

The square frame with internal fins secures the polypropylene siphon, enhancing stability and performance during installation and use. With its streamlined design, the grid allows for fast and effective water drainage, making it a reliable choice for urban and industrial applications.

Features

• Material: made of spheroidal cast iron GJS 500-7, compliant with EN 124 standards

• Load resistance: supports loads greater than 250 KN, ensuring durability in high-traffic areas

• Applications: designed for road edges, industrial zones, and parking areas

• Frame design: square frame with internal fins for secure siphon placement

• Drainage efficiency: optimized design for effective water management

Dimensions

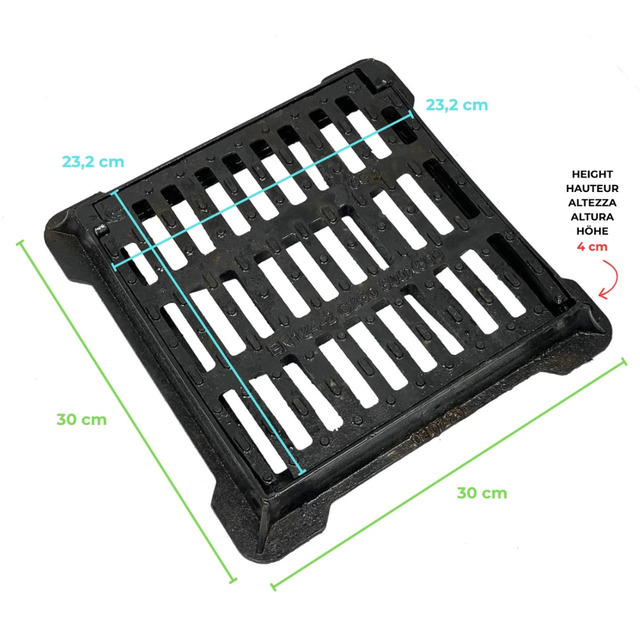

• 300 x 300 mm: grid size 232x232 mm, clear opening 201x201 mm, height 40 mm, drainage surface 1.60 dm², weight 5.8 kg

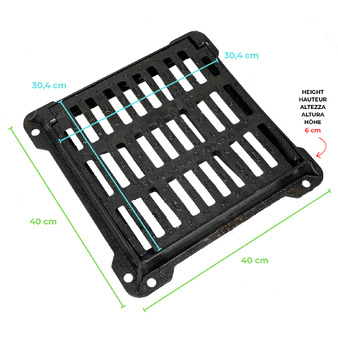

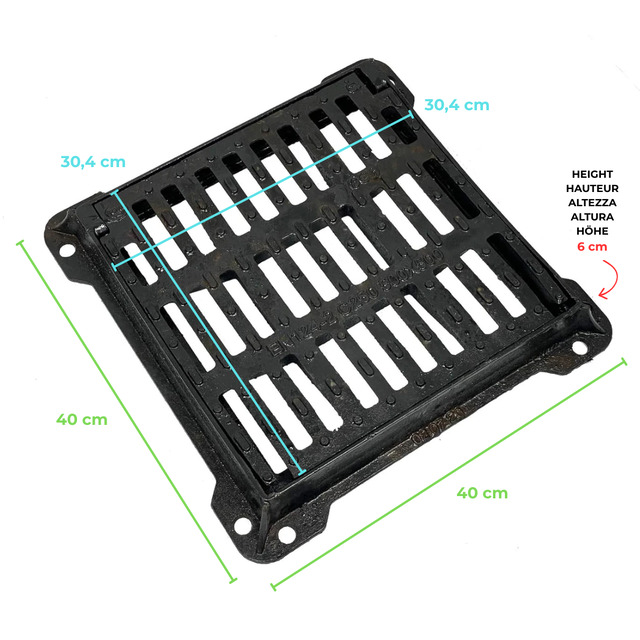

• 400 x 400 mm: grid size 304x304 mm, clear opening 254x254 mm, height 60 mm, drainage surface 3.10 dm², weight 12.4 kg

• 500 x 500 mm: grid size 400x400 mm, clear opening 350x350 mm, height 60 mm, drainage surface 5.20 dm², weight 19.2 kg

• 550 x 550 mm: grid size 432x432 mm, clear opening 384x384 mm, height 60 mm, drainage surface 6.10 dm², weight 22.9 kg

• 600 x 600 mm: grid size 500x500 mm, clear opening 450x450 mm, height 60 mm, drainage surface 8.10 dm², weight 27.2 kg

• 700 x 700 mm: grid size 600x600 mm, clear opening 500x500 mm, height 65 mm, drainage surface 12.48 dm², weight 38.3 kg

• 800 x 800 mm: clear opening 700x700 mm, height 65 mm, weight 70 kg

Uses and applications

• Road edges: ideal for installation in areas with intense vehicular traffic

• Parking areas: designed for use in parking lots and rest zones

• Industrial zones: highly durable for demanding industrial environments

• Public areas: suitable for parks, public gardens, and other green spaces

Benefits

• Long-lasting durability: built to withstand heavy use and harsh conditions

• Superior resistance: high-quality materials and robust construction ensure extended lifespan

• Enhanced safety: compliant with safety standards for reliable performance

• Efficient drainage: ensures rapid and effective water disposal

• Easy installation: designed for quick and straightforward setup, saving time and labor costs

Frequently asked questions

1. How does the grid prevent clogging?
The internal fins and design of the siphon placement minimize the accumulation of debris, ensuring smooth and uninterrupted water flow.

2. Can the grid handle chemical exposure in industrial zones?
Yes, the spheroidal cast iron construction provides excellent resistance to chemicals, making it suitable for industrial applications.

3. How does the pressure closure system enhance safety?
The pressure closure system ensures the grid stays securely in place, even under heavy vehicular loads, reducing the risk of dislodgment.
